HDMI2.0 analyzer & display

Publisher:adminTime:2022-04-07Number:3

Introduction

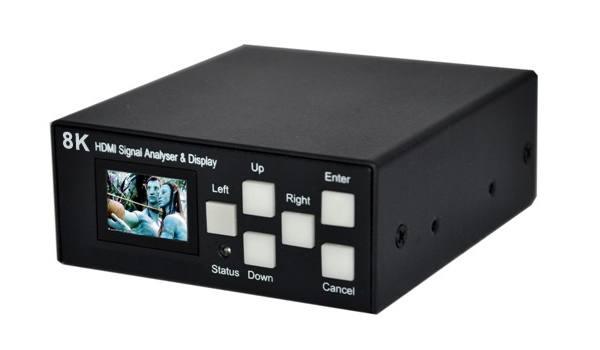

HDMI signal analyzer and displayer SA1H is an advanced device for testing your latest HDMI signal device with HDMI output port such as HDMI repeater, switcher, splitter, matrix etc. It is a small size and with very low power consumption HDMI analyzer and displayer. You can easily take it in your tool box with very little space usage and just using normal cell phone USB power supply within 0.5 Ampere. The 0.95 inch OLED panel for displaying received HDMI signal is convenient for you to see what content is outputting from the HDMI output port of your device and you can get some information about the HDMI signal by turn on the OSD which is overlay on the HDMI image on the OLED panel. You can use it to monitor whether the HDMI signal is stable while you freeze the image by controlling the Blu-ray player or other content player. By using computer to connect to SA1H, you can know when and how often the unstable issue happened. Even more, you can download the image and store it in raw data file and BMP format. It is very useful for engineer to analyzer the picture quality. It has phoenix socket for RS232 input from PC and loop out to next machine in daisy chain mode. In this way, you can set up a big test system with many SA1H to test your products.
